Features and Benefits

• Optimal HD audio, full duplex technology
• Yealink Noise Proof Technology
• 20-foot (6-meter) and 360-degree microphone pickup range
• Two additional CP Wireless Expansion Mic CPW90
• Built-in 3-microphone array
• Based on Android 5.1 operating system
• 5-inch multi-touch screen with 720x1280 resolution
• Yealink Pentagon Meeting Room
• 5-way conference call
• Hybrid UC meeting
• Built-in Wi-Fi (2.4GHz/5GHz, 802.11a/b/g/n/ac)
• Built-in Bluetooth 4.0
• Connect to PC via USB Micro-B port

Note: This item does not include wireless microphones.

Specifications

Audio Features

• Optimal HD audio
• Yealink Noise Proof Technology
• Background noise suppression
• 20-foot (6-meter) microphone pickup range
• Apply to medium to large conference room
• Built-in 3-microphone array, 360-degree voice pickup
• 56mm diameter and 10w speaker
• Full-duplex speakerphone with AEC
• Echo cancellation tail length is up to 320ms
• Codecs: G722, G722.1C, G726, G729, G723, iLBC, Opus, PCMA, PCMU
• DTMF: In-band, Out-of-band (RFC 2833) and SIP INFO
• VAD, CNG, PLC, AJB, AGC

Phone Features

• 1 VoIP account
• Call hold, mute, DND, call recording, hotline
• 5-way conference call
• Redial, call waiting, emergency call
• Call forward, call transfer, call return, dial plan
• Ring tone selection/import/delete
• Set date time manually or automatically
• Volume adjustment
• Pairing via Bluetooth/USB Micro-B port
• External speaker connection via 3.5mm audio-out port
• Create meeting directly
• Join meeting seamlessly
• Active Speaker

Star Connection

• Up to four CP960: One Master CP, three Slave CP
• Wired network only
• Two expansion microphones for each CP960

Directory

• Local phonebook up to 1000 entries
• XML/LDAP remote phonebook
• Intelligent search method
• Phonebook search/import/export
• Call history: dialed/received/missed/forwarded
• Blacklist

IP-PBX Features

• Busy Lamp Field (BLF)
• Multicast paging
• Intercom
• Anonymous call
• Anonymous call rejection
• Voice mail
• Distinctive ringtone
• Call pickup

Display

• 5” 720x1280 capacitive touch screen
• Volume key
• Home button

Interface

• 1 x RJ45 10/100M Ethernet port
• Built-in Wi-Fi (2.4GHz/5GHz, 802.11a/b/g/n/ac)
• Built-in Bluetooth 4.0
• Power over Ethernet (IEEE 802.3af ), class 4
• 2 x Wired MIC port
• 2 x USB 2.0 port
• 1 x 3.5mm audio-out port
• 1 x USB 2.0 Micro-B device port
• 1 x Security slot

Network and security

• SIP v1 (RFC2543), v2 (RFC3261)
• SIP server redundancy supported
• IPv4/IPv6
• NAT traversal: STUN mode
• Proxy mode and peer-to-peer SIP link mode
• IP assignment: static/DHCP
• HTTP/HTTPS web server
• Time and date synchronization using SNTP
• UDP/TCP/DNS-SRV (RFC 3263)
• QoS: 802.1p/Q tagging (VLAN), Layer 3 ToS, DSCP
• SRTP for voice encryption
• Transport Layer Security (TLS)
• HTTPS certificate manager
• AES encryption for configuration file
• Digest authentication
• OpenVPN, IEEE802.1X

Management

• Configuration: browser/phone/auto-provision
• Auto-provision via FTP/TFTP/HTTP/HTTPS for mass deploy
• Auto-provision with PnP
• Zero-sp-touch, TR-069
• Reset to factory, reboot
• Package tracing export, system log

Physical Features

• Color: Space Silver
• External Yealink PoE adapter (optional)
• Power consumption (PoE): 3.9w-9.18w
• Dimension (W*D*H): 338mm*338mm*74mm
• Operating humidity: 10~90%
• Storage temperature: -10~40°C (+14~104°F)

In the box

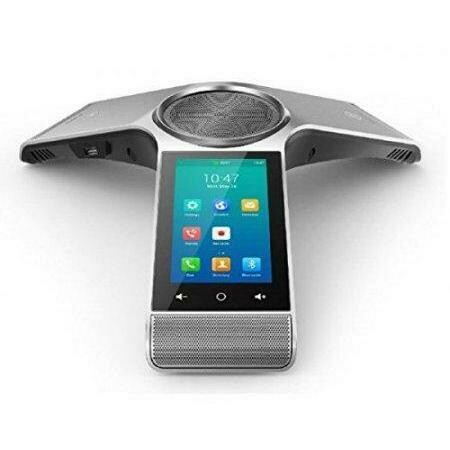

• Yealink CP960 IP conference phone
• Ethernet Cable
• Quick Start Gu
